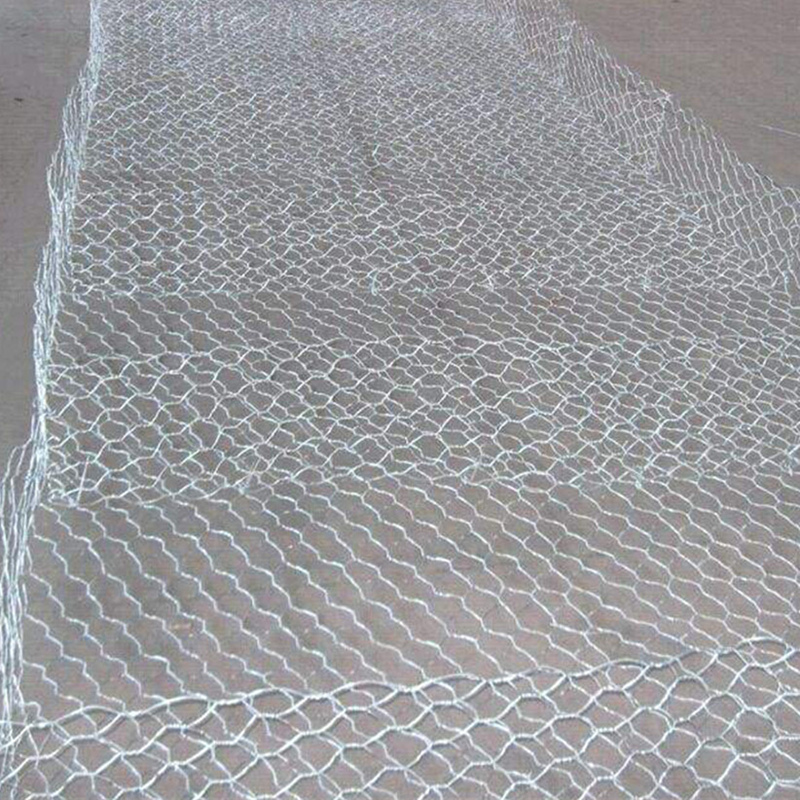

Galfan Gabion Mats (Reno Mattress)
Galfan mattress are manufactured from 95% Zn and 5% or 90% Zn and 10% Al coated double twist hexagonal wire mesh.
| Place of Origin: | China (Mainland) | Brand Name: | Model Number: | KS-Gabion mattress | |
| Type: | Hexagonal wire netting | Application: | Gabions | Hole Shape: | Hexagonal |
| Aperture: | 60*80;80*100;100*120;120*150 | Material: | Galvanized Iron Wire,Galvanized;PVC/PE coated;Galfan coated | Wire Gauge: | 2.0-5.0, 2.0-5.0mm |
| Color: | As your request | Feature: | Strong and Durable | Technique: | Woven |
| Zinc coating: | 245-290g/m2 | Weave Style: | Plain weave | Business type: | Manufacturer |
| Good corrosion resistance: | Oxidation resistance | Flood bank or guiding: | Bank Preventing of rock |
| Packaging Detail: | Flat bundle,binding with steel strape or strands,some rolls customer's suggestions are accepted with pleasure. |
| Delivery Detail: | About 15 days after deposit,according to quantity |
Product Description
1. Introduction
Mattress are filled with stones on site to create a flexible, permeable and monolithic structure for use in river and canal bank protection works as well as erosion control and scour protection of slopes.
The galfan coating provides highest corrosion resistance in comparison to normal hot dip galvanized coating wire, the passive corrosion inhibition of aluminum oxidation with the active and passive effects of zinc. Galfan (95% zinc, 5% aluminium) has proven to be 2 to 3 times more corrosive resistant than the same thickness of hot dipped galvanized. Depending on the environment, it may take 50 years to 150 years for 5% rust to show on the surface of galfan when above ground.
Sizes of gabion mattress/reno mattress
Standard sizes: 6x2x0.17m 6x2x0.23m 6x2x0.30m 3x2x0.17m 3x2x0.23m 3x2x0.30m
Mesh size(mm): 60x80mm,80x100mm,100x120mm,120x150mm
Wire diameter: 2.2mm/3.2mm,2.4mm/3.4mm,2mm/3.0mm
(We can manufacture as client's demand.)
2. Specification
Gabion Mattress/Reno Mattress
| Length(m) | Width(m) | Height(m) | Mesh type(mm) |
| 3m | 2m | 0.15-0.20-0.25 | 80x100 |
| 4m | 2m | 0.15-0.20-0.25 | 80x100 |
| 5m | 2m | 0.15-0.20-0.25 | 80x100 |
| 6m | 2m | 0.15-0.20-0.25 | 80x100 |
| 3m | 2m | 0.17-0.23-0.30 | 60x80 |
| 4m | 2m | 0.17-0.23-0.30 | 60x80 |
| 5m | 2m | 0.17-0.23-0.30 | 60x80 |
| 6m | 2m | 0.17-0.23-0.30 | 60x80 |
(All sizes and dimensions are nominal. Tolerances of ± 3% of the width, length, and ±2.5 cm of the height shall be permitted.)
3. Characteristics
1). Economcal. It only needs to load a stone cage that can be sealed.
2). Construction is simple, without special skills.
3). A strong withstand natural damage and corrosion resistance and resistance to adverse effects of climate.
4). Withstand large-scale deformation, and does not collapse.
5). Cage rock crevice between the mud to plant production, with the surrounding natural environment melting together.
6). Has good permeability to prevent static fluid from the damage caused.
7). Save transportation costs. Can be folded up and assembly on site.
4. Application
1) Control and guide of water or flood;
2) Preventing of rock breaking;
3) Rock fall protection;
4) Water and soil protection
5) Bridge protection
6) Strengthening structure of soil
7) Protection engineering of seaside area
8) Port project
9) Keep off dust wall
10) Roadway protection
